LAND ROVER DEFENDER 110 1998 TO 2002 ARB DIFF COVER RED COVER. PART- DA8926

PRODUCT DESCRIPTION

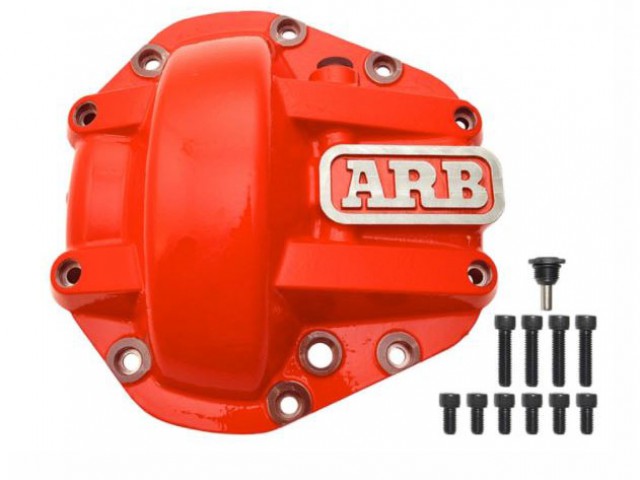

ARB DIFF COVER RED COVER

DEFENDER - FRONT AND REAR SALISBURY AXLES

HIGH TENSILE SOLID NODULAR IRON STRUCTURE (TOUGHER AND HARDER THAN

SOLID CARBON STEEL) PROTECTS THE DIFFERENTIAL AND RING & PINION SET

FROM THE OBSTACLE IMPACT HAZARDS OF COMPETITION ROCK CRAWLING, OR

EXTREME OFF ROAD TRAILS.

COMPUTER OPTIMIZED CROSS BRACE DESIGN ADDS MORE THAN 1300 NM/

DEG (960FT-LB) OF TORSIONAL RIGIDITY TO THE ENTIRE AXLE ASSEMBLY. THIS

INCREASED FLEXURAL STRENGTH IN THE HOUSING HELPS KEEP THE RING &

PINION GEARS MESHING ON THE FLAT FACES OF THE TEETH, WHICH GREATLY

INCREASES RING & PINION LIFE AND OVERALL MAXIMUM LOAD STRENGTH.

CARRIER BEARING LIFE IS PROLONGED, ESPECIALLY ON HIGH OUTPUT

VEHICLES, BY THE IMPROVED SUPPORT GIVEN TO THE BEARING ALIGNMENT.

LOW-PROFILE SHAPE OF THE OUTSIDE SURFACE HELPS MAXIMISE THE

RUNNING GEAR CLEARANCE AROUND THE COVER.

MAXIMIZED APPROACH/ DEPARTURE ANGLED EXTERIOR SURFACES HELP TO

MINIMISE ROCK/ OBSTACLE HANG-UPS.

HIGH TENSILE CAP SCREWS (SUPPLIED WITH THE KIT) ARE RECESSED INTO

THE COVER TO PROTECT THEM FROM CONTACT WITH OBSTACLES WHICH MIGHT

DAMAGE OR LOOSEN THEM.

COVER IS POWDER COATED, CNC MACHINED, THEN CLEAR COATED FOR A

DURABLE, PROFESSIONAL, LONG LASTING FINISH; HARDWARE IS ZINC PLATED.

LOW PROFILE DRAIN PLUG DESIGN RESISTS DAMAGE FROM OBSTACLES.

COMBINATION OF THE HIGH FILLER POINT AND DIPSTICK ALLOWS THE OIL TO BE

CHECKED FOR WATER CONTAMINATION WITHOUT HAVING TO DRAIN THE OIL.

MAGNET LOCATION IN THE END OF THE DIPSTICK ALLOWS THE OIL TO BE

CHECKED FOR TELL-TALE SIGNS OF INTERNAL DAMAGE.

TOP QUALITY, HIGH POWER NEODYMIUM MAGNETS ARE USED IN BOTH THE

DRAIN PLUG AND THE DIPSTICK TO COLLECT METALLIC WEAR PARTICLES AS THE

VEHICLE MOVES.

COMPATIBILITY

LAND ROVER DEFENDER 110 1998 TO 2002

PART NO

DA8926
